Frame
Member Data - End Operations
(Revised: 04/01/08)
The End Operations screen is used to define
end condition for slope cutting the flanges.
Sample
Options - End 1:
|
None (Square Cut) |
Right Cut |
Left Cut |
|
Double Cut |
Double Cut Into |
|
Sample
Options - End 2:
|
None (Square Cut) |
Right Cut |
Left Cut |
|
Double Cut |
Double Cut Into |
|

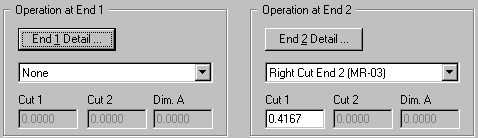

End1 & End 2:
End
1 Detail / End 2 Detail
This
button will display view options of different end conditions.
Detail
Description
Select
from pull down list a predefined shape end cut.
Cut
1 / Cut 2
In
these edit boxes, enter required Cut Dimension in Decimal Inches.
Dim
A
In
this edit box, enter the required Dimension A, if applicable.
Standard
Controls:
