Shop Drawing
(Revised:
11/11/2014)

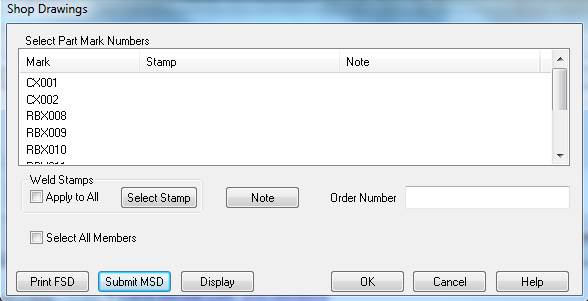

The Shop Drawings screen is
used to print FSD’s, Submit MSD’s, and add Weld Stamps and notes to shop
drawings.

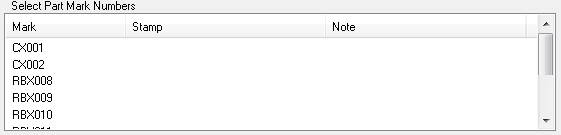

Part Mark List:
This list is all available
frame parts in the file.
Weld Stamp:
Apply to All
This option applies the selected weld stamps to all
frame parts.
Select Stamp
Allows the user to select standard weld stamps from a
list and apply the stamps to selects frame parts.

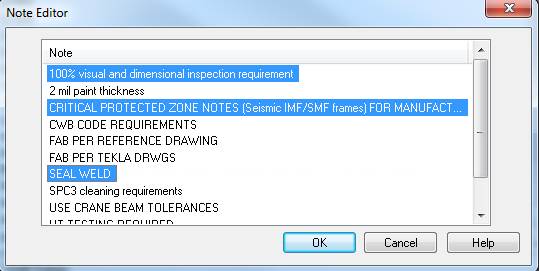

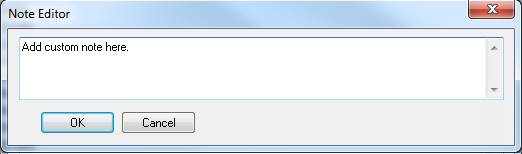

Note:
This option allows the user
to create a custom note and apply it to the selected frame parts.
Order Number:
Input order number here.
Select All
Selects
all Frame Parts in the list.
Print FSD
Prints all selected frame
parts in FSD form.
Submit MSD
Submits all selected frame
parts in MSD form to the MSD generation program.
Display
NA
