Secondary - Framed Opening
Note: Links on this page to SED's & Fab Drawing will only be available for BlueScope Employees.
(Revised: 12/2/24)

Girts at a Framed Opening
Base of Jamb
Top of Jamb
Girt to Jamb
Header to Jamb
Girt to Double Jamb
Header to Double Jamb

Girts at a Framed Opening: top

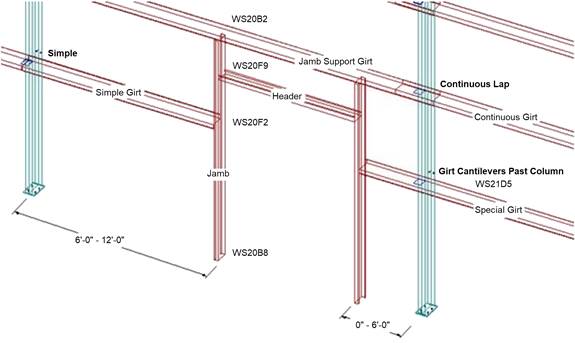

Secondary Lap Rules at a Framed Opening:

Cantilever = When the distance from Jamb to Column 0" - 6'-0".

Simple = When the distance from Jamb to Column 6'-0" - 12'-0".

Continuous Lap = When the distance from Jamb to Column > 12'-0".

Framed Opening Jamb and Header Material Size Progression:

1. Match the secondary depth for the surface, using the smallest available thickness.

2. Use double jambs and/or headers, bar steel primed, using the smallest available thickness.

Base of Jamb: top

Jamb to Base (WS20B8)	Clip = 1/2" x 1 1/4" Thin Head Bolts = Anchor Rods = Jamb to Finished Floor Adj. =	PG1 (2) 096636 (2) Not by BBNA 0"
8 1/2" & 10" Double Jamb to Base (WS20B8)	Clip = 1/2" x 1 1/4" Thin Head Bolts = Anchor Rods = Jamb to Finished Floor Adj. =	PG1 (2) 096636 (2) Not by BBNA 0"

Top of Jamb: top

Notes: 1.) Jambs can be the equal Girt depth or Jambs can be Girt depth + 1 1/2". 2.) Jamb to Jamb Support Girt is field drill. Clip is centered on the Jamb.
Jamb to Jamb Support Girt (WS20B2) (Also used at Cee Flipped)	7" - 10" Jamb Support Clip = 11 1/2" Jamb Support Clip = 1/2" x 1 1/2" Bolts = 1/2" x 1 1/4" Thin Head Bolts = Jamb to 7" - 10" Girt Adj. = Jamb to 11 1/2" Girt Adj. =	PG1 PGV1067 (2) 49080 (Field Drill Girt) (2) 096636 Jamb Support Girt - 3 3/4" Jamb Support Girt - 4 3/4"
Jamb to Jamb Support Cee (WS20B1) (Cee Not Flipped)	Jamb Support Girt Clip = 1/2" x 1 1/2" Bolts = 1/2" x 1 1/4" Thin Head Bolts = Jamb to Girt Adj. =	GC5 (2) 49080 (Field Drill Girt) (2) 096636 Jamb Support Girt - 1/4"
Jamb to Inset / Flush Frame (WS20B4)	7" Jamb, 6" BL to CL = 8 1/2" Jamb, 6" BL to CL = 10" Jamb, 6" BL to CL = 11 1/2" Jamb, 6" BL to CL = 1/2" x 1 1/2" Bolts = Jamb to Rafter Adj. =	DJC4L p074 DJC4R p074 DJC2 p DJC3 p DJC4L p054 DJC4R p054 (4) 49080 (Field Drill Rafter) Rafter Inside Flange - 1 1/4"
Jamb to Outset Frame (WS20B5)	7" Jamb, 1'-0" BL to CL = 8 1/2" Jamb, 1'-0" BL to CL = 10" Jamb, 1'-3" BL to CL = 11 1/2" Jamb, 1'-3" BL to CL = 1/2" x 1 1/2" Bolts = Jamb to Rafter Adj. =	DJC1 107 DJC1 102 DJC1 123 DJC1 115 (4) 49080 (Field Drill Rafter) Rafter Inside Flange + 5 3/4"
Endwall Jamb to Rafter Web 7" & 8 1/2" Outset / Bypass Endwall Girts, 1'-0" BL to CL Frame 10" & 11 1/2" Outset / Bypass Endwall Girts, 1'-3" BL to CL Frame

Girt to Jamb: top

Girt to Jamb (WS20F2)	7" Jamb to 7" Girt = 8 1/2" Jamb to 8 1/2" Girt = 10" Jamb to 10" Girt = 11 1/2" Jamb to 11 1/2" Girt = 8 1/2" Jamb to 7" Girt = 10" Jamb to 8 1/2" Girt = 11 1/2" Jamb to 10" Girt = 1/2" x 1 1/4" Thin Head Bolts = 1/2" x 1 1/2" Bolts = Girt to 7" - 10" Jamb Adj. = Girt to 11 1/2" Jamb Adj. =	JTG3 JTG1 JTG4 JTG2 JTG6 JTG5 JTG2 (2) 096636 (2) 49080 Opening - 3 1/4" Opening - 6 1/4"
Cantilever (WS21D5)	7" Jamb to 7" Girt = 8 1/2" Jamb to 8 1/2" Girt = 10" Jamb to 10" Girt = 11 1/2" Jamb to 11 1/2" Girt = 8 1/2" Jamb to 7" Girt = 10" Jamb to 8 1/2" Girt = 11 1/2" Jamb to 10" Girt = 1/2" x 1 1/4" Thin Head Bolts = Clip / Girt 1/2" x 1 1/2" Bolts = Frm / Girt 1/2" x 1 1/2" Bolts = Girt to 7" - 10" Jamb Adj. = Girt to 11 1/2" Jamb Adj. =	JTG3 JTG1 JTG4 JTG2 JTG6 JTG5 JTG2 (2) 096636 (2) 49080 Welded (2), Bolted (4) 49080 Opening - 3 1/4" Opening - 6 1/4"
Inset / Special Set (WS21D3) When the girt length is < 1'-6"	7" Jamb to 7" Girt = 8 1/2" Jamb to 8 1/2" Girt = 10" Jamb to 10" Girt = 11 1/2" Jamb to 11 1/2" Girt = 8 1/2" Jamb to 7" Girt = 10" Jamb to 8 1/2" Girt = 11 1/2" Jamb to 10" Girt = 1/2" x 1 1/4" Thin Head Bolts = JCP / Jamb 1/2" x 1 1/2" Bolts = JCP / Col. 1/2" x 1 1/2" Bolts = Clip between Frame & Jamb = Girt Filler Angle =	JTG3 JTG1 JTG4 JTG2 JTG6 JTG5 JTG2 (2) 096636 (2) 49080 Welded (2), Bolted (4) 49080 JCP- GFA-

Header to Jamb: top

Header to Jamb (WS20F9)	Clip = 1/2" x 1 1/4" Thin Head Bolts = Header to Jamb Adj. = Hole in Header = Hole in Jamb =	PG1 (4) 096636 0" 1 15/16" from Jamb 1 5/16" above Header
Liner Header to Jamb (WS21D1)	Clip = 1/2" x 1 1/4" Thin Head Bolts = Header to Jamb Adj. = Hole in Header = Hole in Jamb =	PG1 (4) 096636 0" 1 15/16" from Jamb 1 5/16" above Header
Additional Header for Hood (WS21D2)	Clip = 1/2" x 1 1/4" Thin Head Bolts = Header to Jamb Adj. = Hole in Additional Header = Hole in Jamb =	PG1 (4) 096636 0" 1 15/16" from Jamb Field Drill
Door Header Channel (WS21D7)	7" Girt = 8 1/2" Girt = 10" Girt = 11 1/2" Girt = 1/4 - 14 x 1 1/4" Fasteners =	DHA- DHC- DHD- DHE- (12" o.c.) 55307

Girt to (8 1/2" & 10") Double Jamb: top

Girt to Jamb (WS20E2)	8 1/2" Double Jamb Clip = 10" Double Jamb Clip = 1/2" x 1 1/2" Bolts = Girt to 8 1/2 Double Jamb Adj. = Girt to 10" Double Jamb Adj. =	JGC2 JGCB (2) 49080 Opening - 6" Opening - 6 1/2"
Cantilever (WS21E5)	8 1/2" Double Jamb Clip = 10" Double Jamb Clip = Clip / Girt 1/2" x 1 1/2" Bolts = Frm / Girt 1/2" x 1 1/2" Bolts = Girt to 8 1/2 Jamb Adj. = Girt to 10" Jamb Adj. =	JGC2 JGCB (2) 49080 Welded (2), Bolted (4) 49080 Opening - 6" Opening - 6 1/2"
Inset / Special Set (WS21E3) When the girt length is < 1'-6"	8 1/2" Double Jamb Clip = 10" Double Jamb Clip = JCP / Jamb 1/2" x 1 1/2" Bolts = JCP / Col. 1/2" x 1 1/2" Bolts = Clip between Frame & Jamb = (Jamb = Girt) Girt Filler Angle =	JGC2 JGCB (2) 49080 Welded (2), Bolted (4) 49080 JCP- GFA-

Header to (8 1/2" & 10") Double Jamb: top

Header to Jamb (WS20J9)	8 1/2" Welded Clip = 10" Welded Clip = 1/2" x 1 1/4" Thin Head Bolts = Header to Jamb Adj. =	JGCF JGCG (2) 096636 0"
Liner Header to Jamb (WS21E1)	8 1/2" Welded Clip = 10" Welded Clip = 1/2" x 1 1/4" Thin Head Bolts = Header to Jamb Adj. =	JGCF JGCG (2) 096636 0"

Framed Opening - Sill Connections:

Door Sill to Jamb (WS20FB)

Clip = 1/2" x 1 1/4" Thin Head Bolts = Sill to Jamb Adj. = Hole in Sill = Hole in Jamb =

PG1 (4) 096636 0" 1 15/16" from Jamb 1 5/16" Below Sill
