Drawing Editor - Move a Single Revision Cloud
(New:
|
|

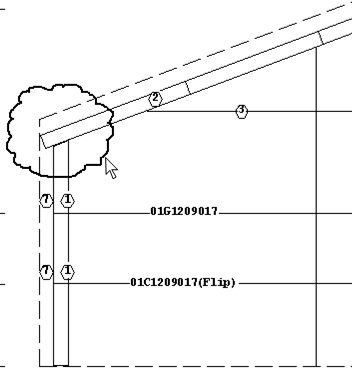

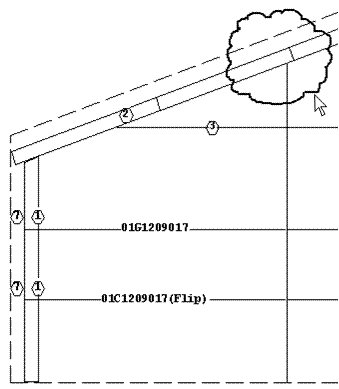

1. Select a drawing from the Drawing List dialog box. 2. Move or close the drawing list dialog box out of your way. 3. Left mouse click on the Revision Cloud you want to move. It will highlight. Click on the Revision Cloud again, hold the left mouse button down, and release the button where you want the Revision Cloud to be. 4. Right Click to release the Revision Cloud. |
|
|
5. If the Revision Cloud is not where you want it repeat step 3. 6. Once you are done moving the selected item, you MUST right click to un-select the item. 7. Print Preview before printing to ensure the Revision Cloud is correct. 8. If the preview looks correct, pick a different drawing. The system will then ask if you want to save, click yes. |
