Accessories – Non Thermal Windows

(Revised: 04/25/08)



This lesson describes some common conditions and detailing procedures for Windows.

1.)     Building Editor

2.)     Window Fins

3.)     Window Framed Openings (Optional)

4.)     Window Fins at Framed Openings





1. Building Editor.

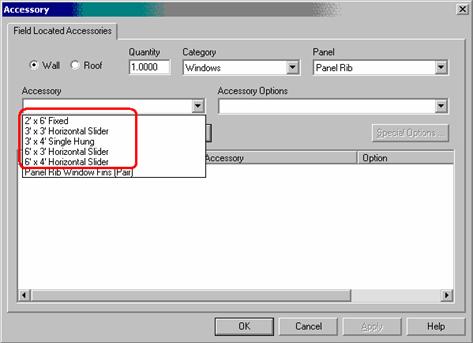

·          All available standard Windows can be added through the Accessories screen.



2. Window Fins.

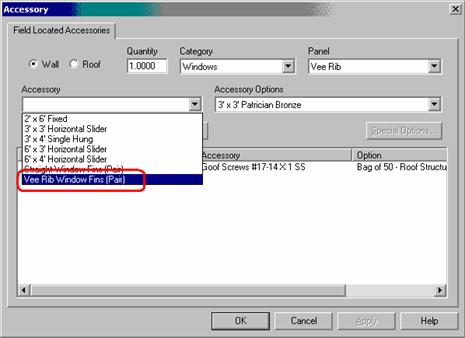

·          Each VR Window requires an additional pair of Window Fins. PR Windows require Fins, but they are packaged with the window as a standard.

·          Do not use PR or VR Window Fins with Framed Openings, SPR Straight Fins.

·          The field located windows must be located on high rib modules, per the installation instructions. So the fins will work properly.







Size

Height

PR

Walls

VR

Walls

FO or Masonry

Straight Fins

3’-0”

74703

74713

SPR

4’-0”

74704

74714

SPR

6’-0”

74706

74716

SPR



2a.  Window Fin Mark Numbers

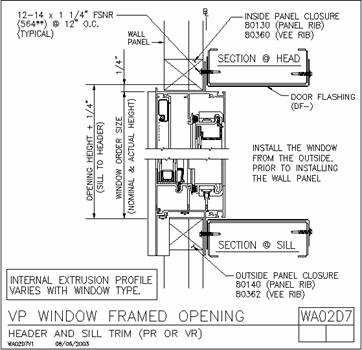

3. Window Framed Openings (Optional).

·          Use Framed Openings when the Window cuts a through a Girt Line or with Liner Panel.

·          For the Header to Sill dimension, add 1/4” to nominal opening height.
(per Win-Tech 08/07/03)

·          Erection sequence:
1. Framed Opening.
2. Door Flashing.
3. Window (from outside).
4. Panel / Insulation.
5. Window Exterior Jamb Trim.

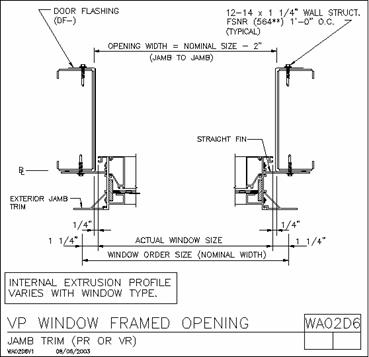

4. Window Fins at Framed Openings.

·          Straight Fins, do not use PR or VR fins with Framed Openings.

·          For the Jamb to Jamb dimension, subtract 2” to nominal opening width.
(per Win-Tech 08/07/03)
